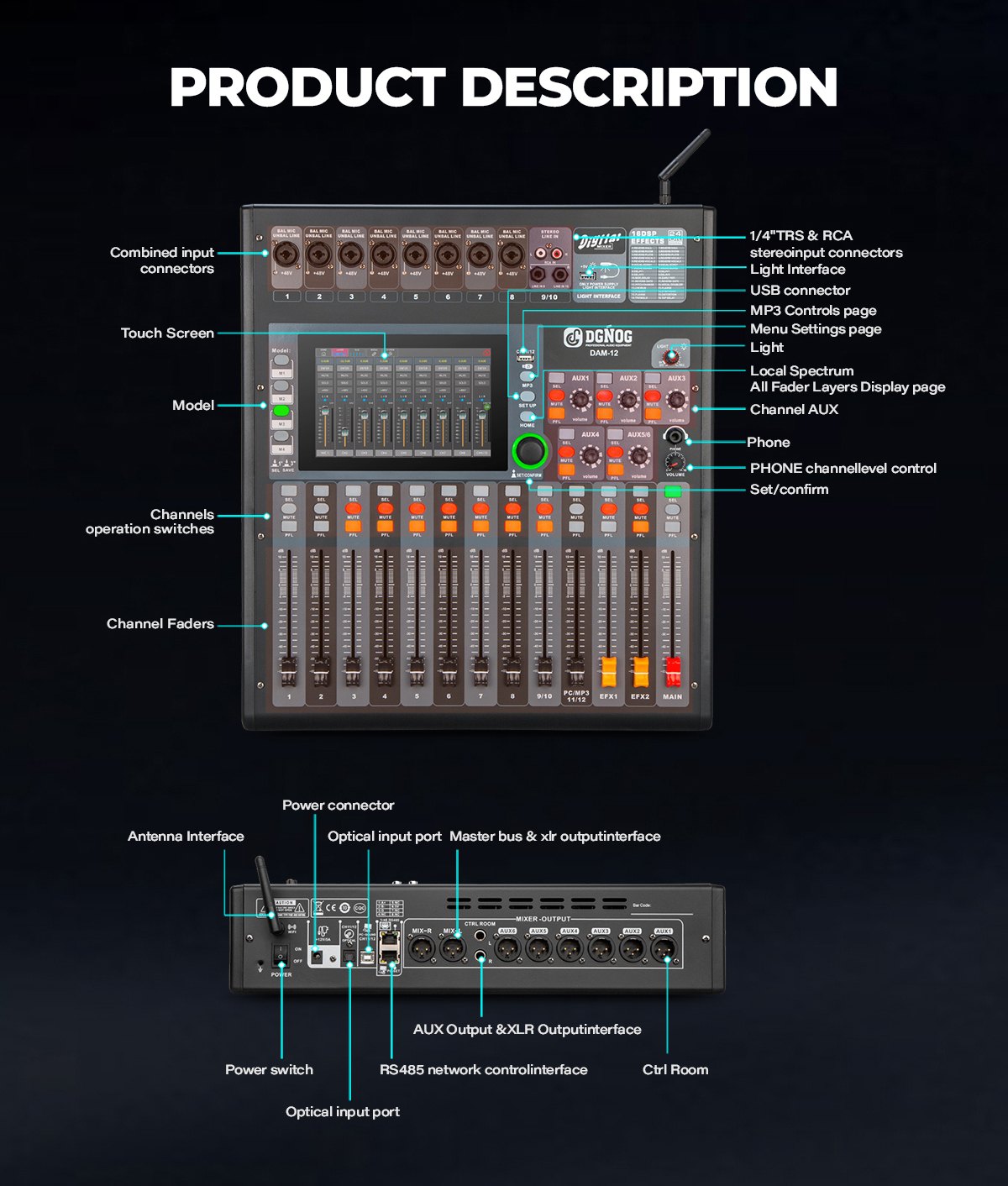

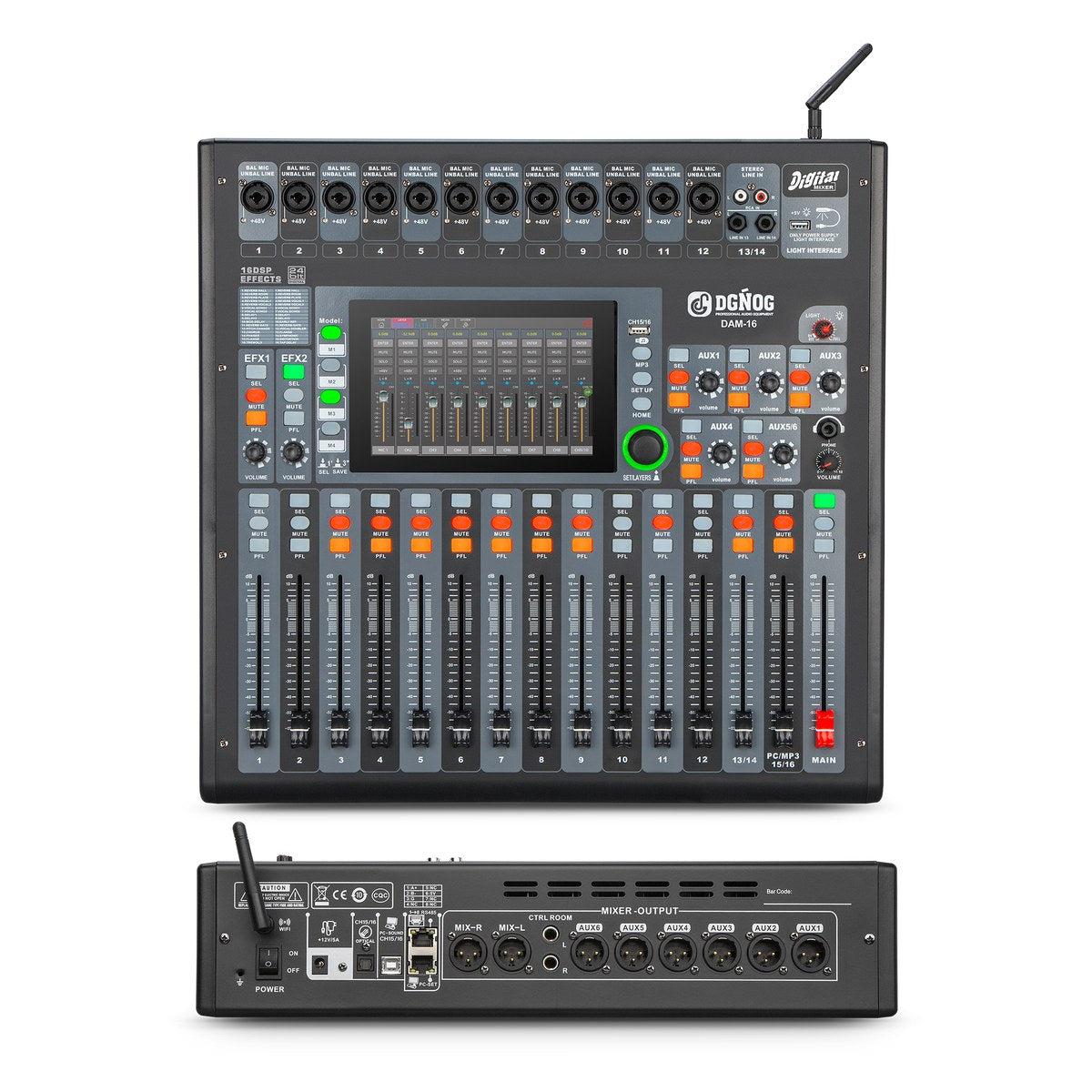

DGNOG DAM-16 Affordable 16-Channel Digital Mixer with Manual Faders, 7" Touchscreen & Wi-Fi

Affordable digital mixing for analog-console users

The DGNOG DAM-16 is a cost-effective digital mixing console for venues, installers and distributors upgrading from an analog mixer. Its manual faders keep operation familiar, while the 7-inch touchscreen, full DSP, scene recall, USB audio and Wi-Fi browser control bring the speed and flexibility of a modern digital workflow.

Ideal for: budget-conscious live sound, houses of worship, schools, small venues and analog-console replacement projects that need more microphone inputs.

Why upgrade from analog

• Familiar manual-fader workflow — easy for analog-console operators to adopt

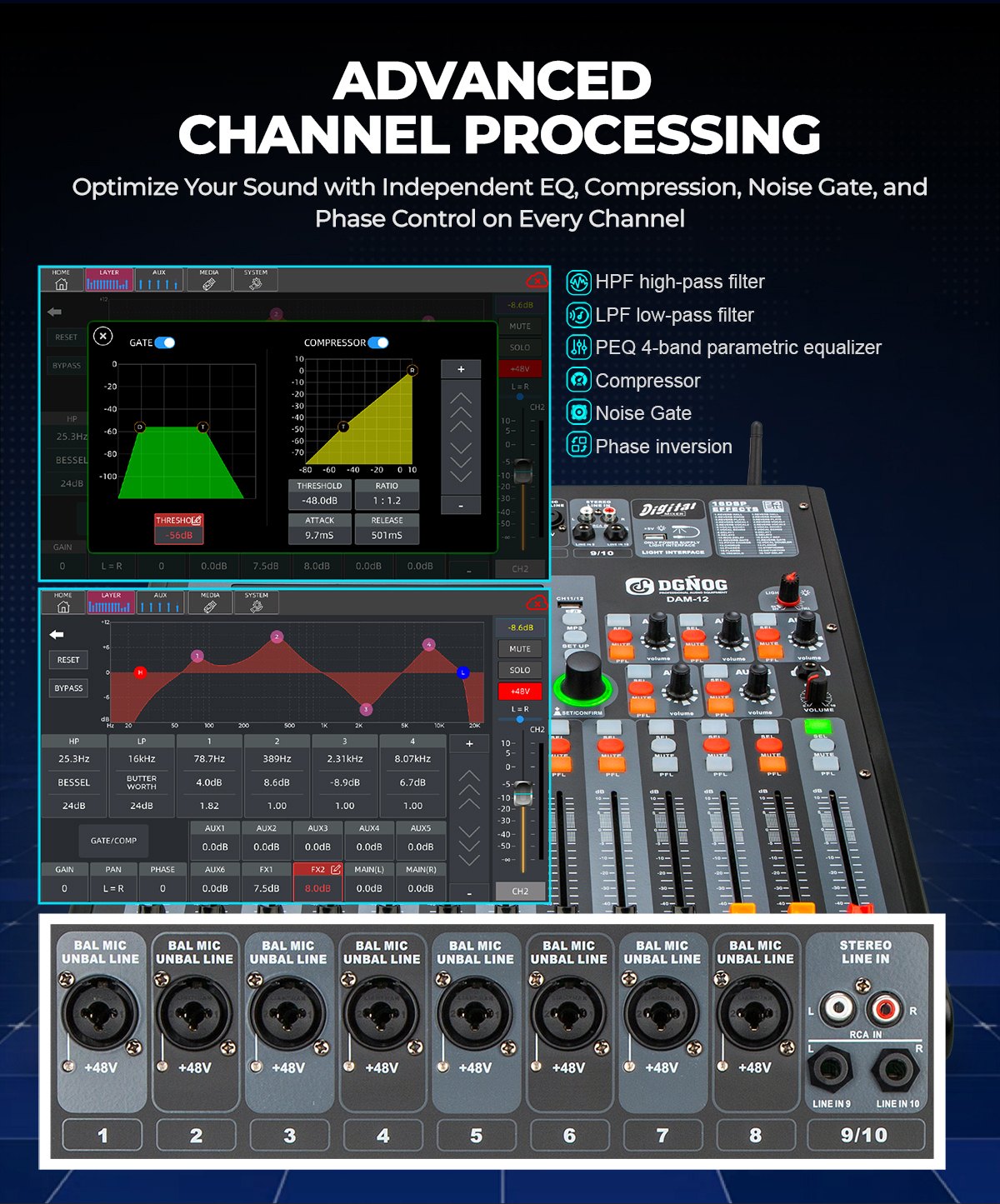

• Built-in digital processing — reduce the need for external EQ, dynamics and effects racks
• Scene recall — save repeatable setups and restore them in one tap
• Wi-Fi browser control — mix remotely from iOS, Android, Windows, macOS or Linux
• Lower purchase and service cost than a motorized-fader console

What you get

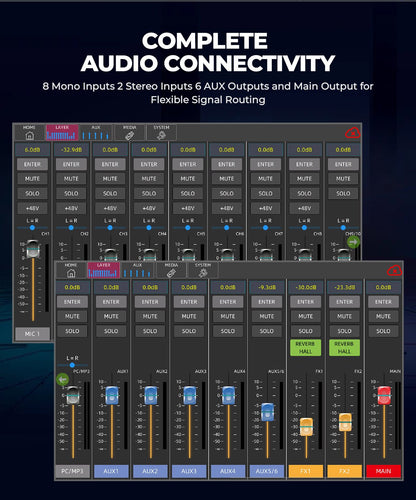

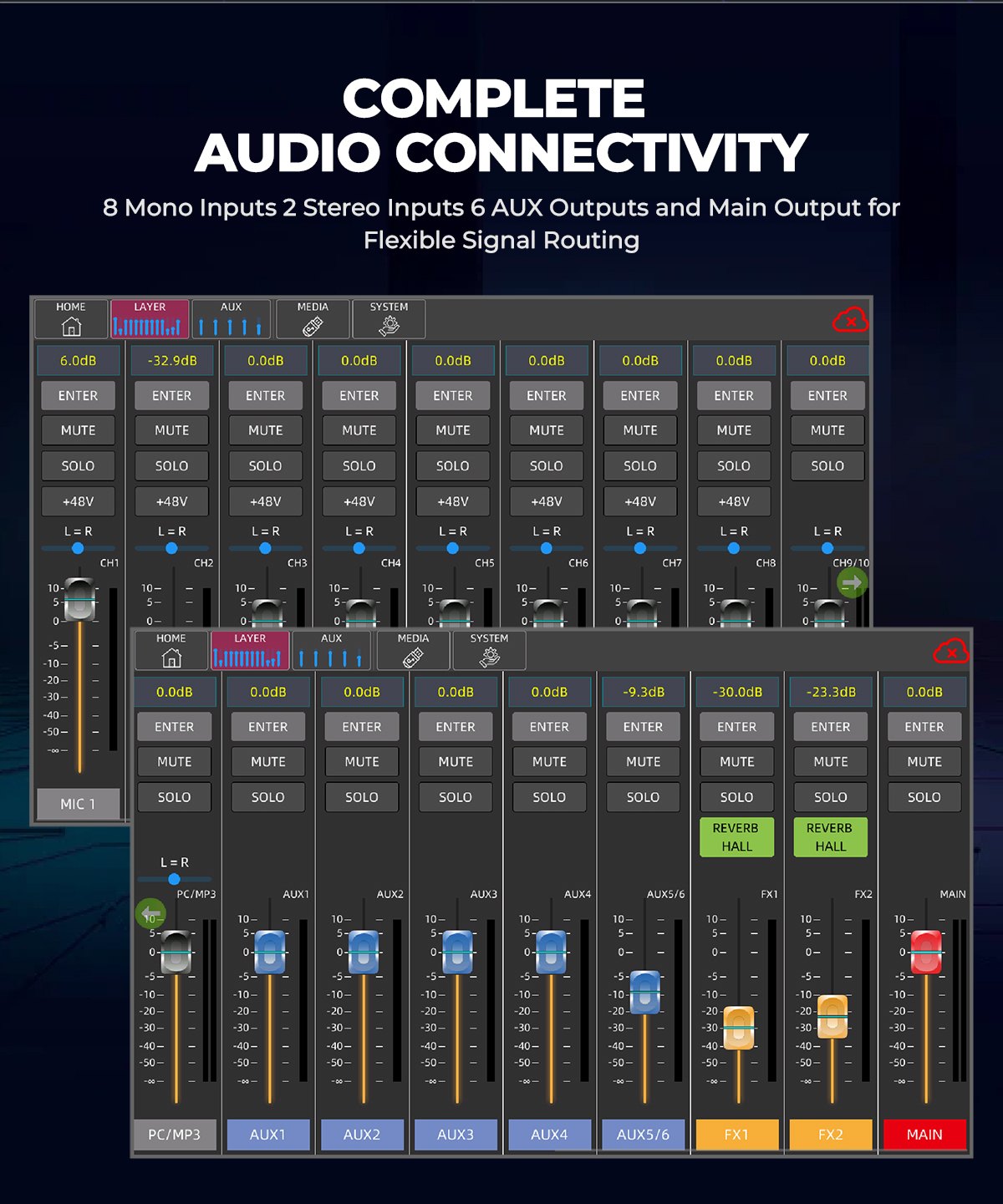

• 16 input channels — 12 mono microphone channels, 2 stereo line channels and 2 digital stereo channels
• Manual faders — tactile control with no motor wear to service
• 7-inch 1280×800 capacitive multi-touch display
• Two stereo effect processors plus 16 programmable custom effect slots
• 6 AUX outputs, plus stereo main, stereo monitor and 2 stereo digital outputs
• USB media player with stereo recording/playback and PC audio interface
• Wi-Fi + HTML5 web server — no app lock-in
• Password protection for local and remote access
• Rack mountable — standard rack brackets included

FAQ

Is the DAM-16 a good replacement for an analog mixer? Yes. It keeps familiar manual faders while adding integrated DSP, scene recall, touchscreen operation, USB audio and wireless remote control.

Does it have motorized faders? No. The DAM series uses reliable manual faders to keep the system economical. For motorized faders, see the MDX or MX series.

Can I control it from a browser? Yes, through the built-in HTML5 server and Wi-Fi hotspot.

Does it record to USB? Yes, with stereo media recording/playback and PC audio-interface operation.

Are rack brackets included? Yes.

Ships from our factory. Contact us for distributor pricing, project quantities or OEM requirements.
