DGNOG IEM300 2 Channel Wireless In-Ear Monitoring System 40 Adjustable UHF Frequencies 300ft IEM Stage Return for Vocalist Bands
DGNOG IEM300 2 Channel Wireless In-Ear Monitoring System 40 Adjustable UHF Frequencies 300ft IEM Stage Return for Vocalist Bands
Regular price
$133.00 USD
Regular price
$266.00 USD
Sale price
$133.00 USD
Unit price
per
Couldn't load pickup availability
【Whole Metal UHF Wireless In-Ear Monitor System】- Our UHF band Phase Lock PLL technology offers exceptional performance within a 32MHz bandwidth, providing 40 preset frequencies for seamless switching. Each channel features 4 frequency bands with 10 adjustable frequency points.
【Ideal for Stage Performances and Sound Broadcasting】- Featuring built-in Limiter circuitry, our system eliminates distortion even at excessive input levels. The front panel boasts a 1/4-inch stereo monitoring headphone jack for convenient use on stage, delivering impressive listening experiences that rival traditional monitoring equipment.
【Sleek Design and Display Features】- Enjoy an elegant liquid crystal display panel with a low battery indicator on the receiver unit. The power and RF receiving indicator lamps provide easy monitoring. Utilizing two AA batteries and an efficient power circuit, our system offers extended service time. Its robust metal housing ensures durability for prolonged use.
【Impressive Wireless Range and Frequency Coverage】- With a wireless range of up to 300 feet, our DGNOG IEM300 in-ear monitor and receiver system offers reliable stage monitoring. Operating within the frequency range of 550MHz to 580MHz, it enhances the signal-to-noise ratio and dynamic range, delivering pristine sound reproduction with minimal interference.
【Advanced Circuit Design for Steady Reception】- Our system employs advanced circuitry to clear receiving blind spots, ensuring steady signal reception. Crafted from tough metal materials, it boasts exceptional strength and durability, making it the top choice for stage performance monitoring needs.
Features:
UHF 2Channel Wireless In-Ear Mono Monitor System
40 Preset Channels in 4 Groups (10 Channels per Group)
Single Gearbox for Simplified Operation
Versatile for Stage Monitoring, Tour Guides, etc.
Easy Installation with Standard Rack Unit Design
Dual Transmitter and Receiver Design for Enhanced Flexibility
Transmitter Specifications:
All-Metal Drop Design Shell
Vibration Mode: PLL Synthetic
Frequency Stability: +/-0.005%
Frequency Range: UHF 550-580MHz
Frequency Change: 32MHz
Operating Mode: Manual Setting
Sensitivity Deviation: 25KHz, 7 dBuV, S/N 78dB
Maximum Deviation: +/- 48KHz
Frequency Response: 50Hz to 15KHz +/- 3dB
Actual Output: 100mW AF
Input: XLR, 6.3mm, F
Headphone Output: 6.3mm, F
Electrical Stream Input: DC 12V/250mA
Antenna Jack: BNC Jack
Receiver Specifications:
Oscillation Mode: PLL Synthetic
Frequency Stability: ±0.005%
Frequency Range: UHF 550-580MHz
Frequency Interval: 32MHz
Preset Channels: 40 Channels in 4 Groups
Operation Modes: Manual Adjustment
Receiving Mode: Single Tuning
Sensitivity: Deviation 25KHz, Connection 7dBuV, S/N >78dB
Max Deviation: ±48KHz
Comprehensive S/N Ratio: >94dB (1KHZ-A)
Comprehensive T.H.D: <1% at 1KHz
Frequency Response: 80Hz to 15KHz, Main 3dB
Output Power (32Ω): 2x35mW at 1KHz
Earphone Load Impedance: ≥16Ω
Output Socket: 3.5mm Headphone Socket
Volume Output Adjustment: Via Power Box

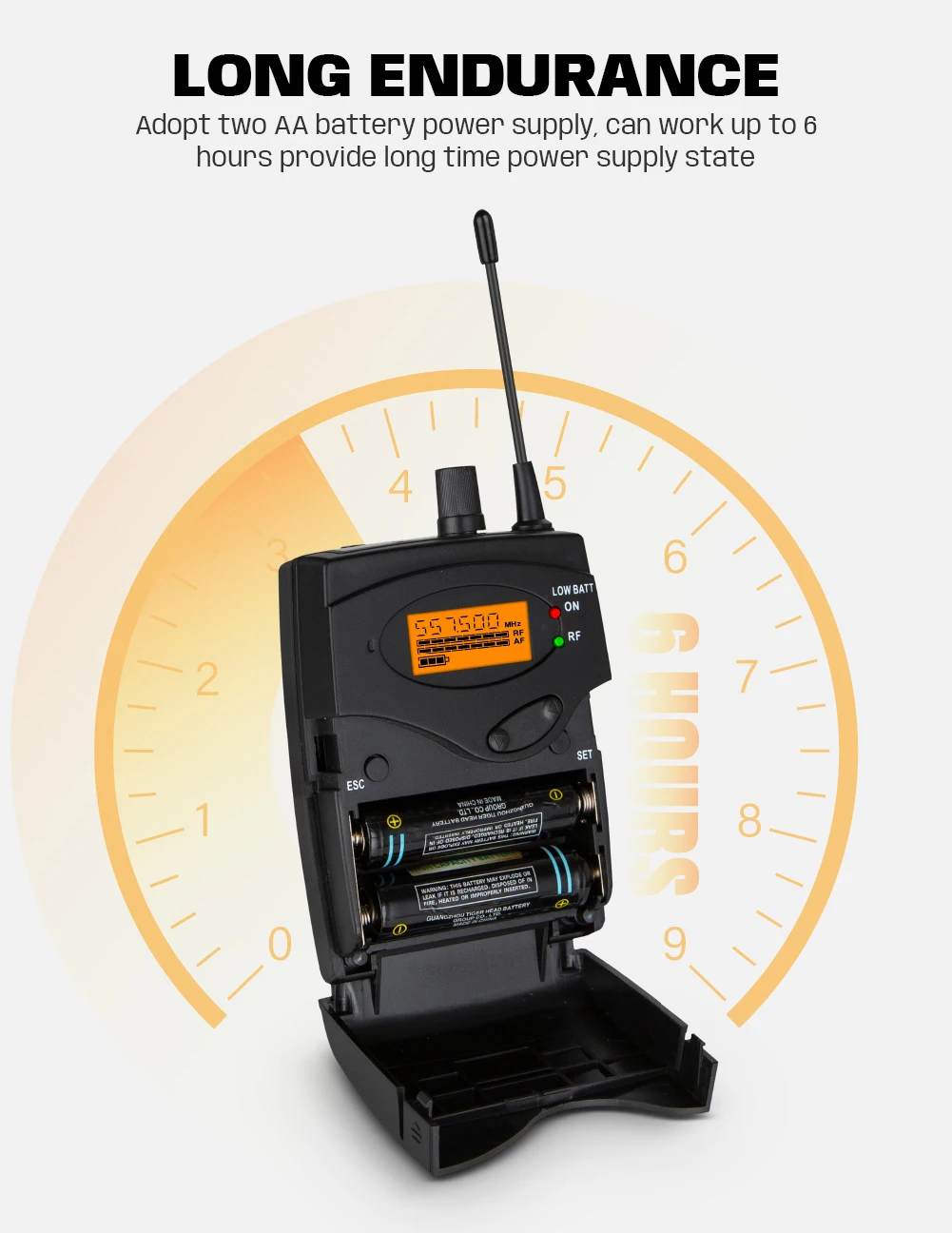

Power Supply: 2x AA Batteries
Current Consumption: 3V/120mA (at Volume Control)
Antenna: Fixed 1/2 inch
