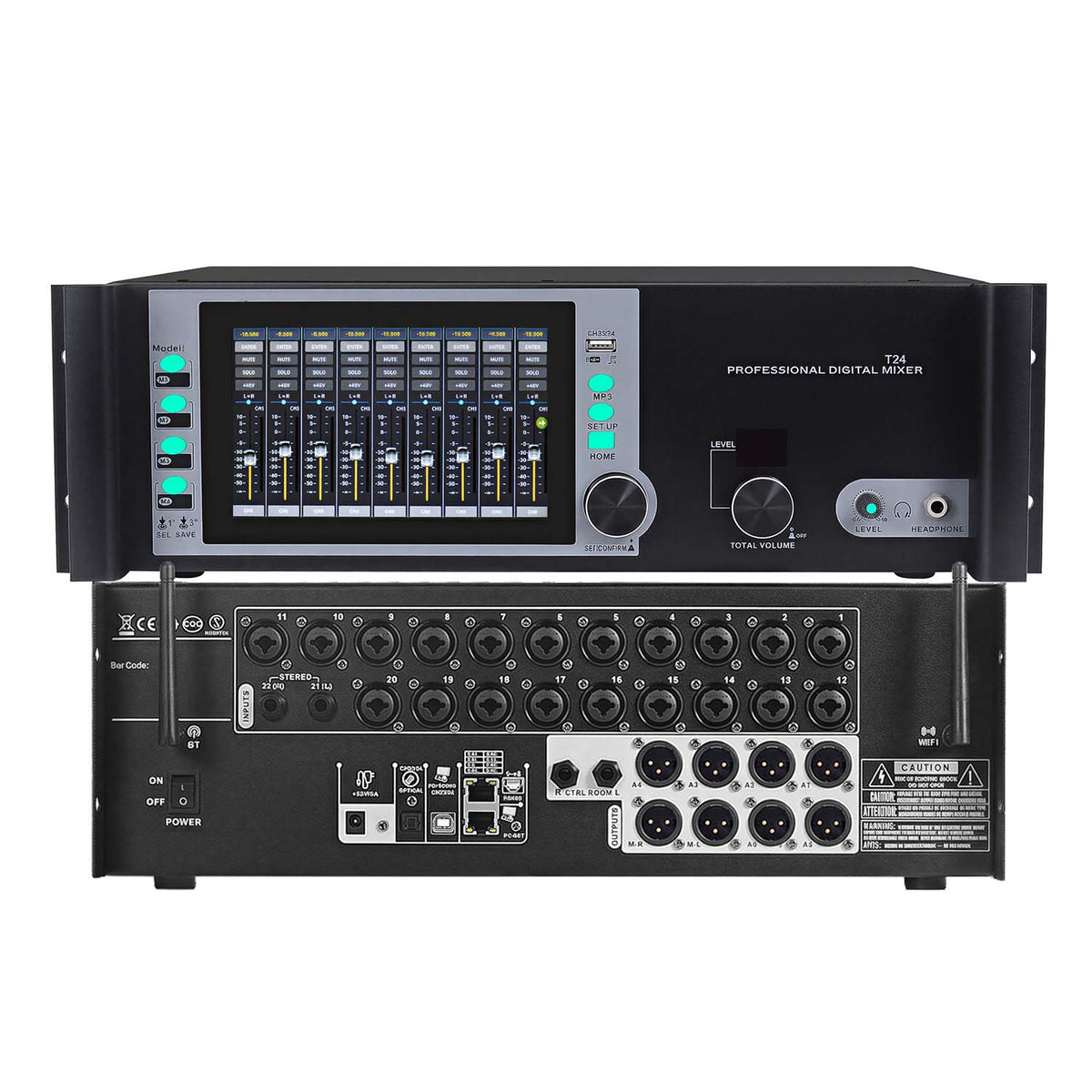

DGNOG T24 24-Channel Touchscreen Digital Mixing Console (No Physical Faders) with 7" Display & Wi-Fi

24 channels of mix control — all on one screen

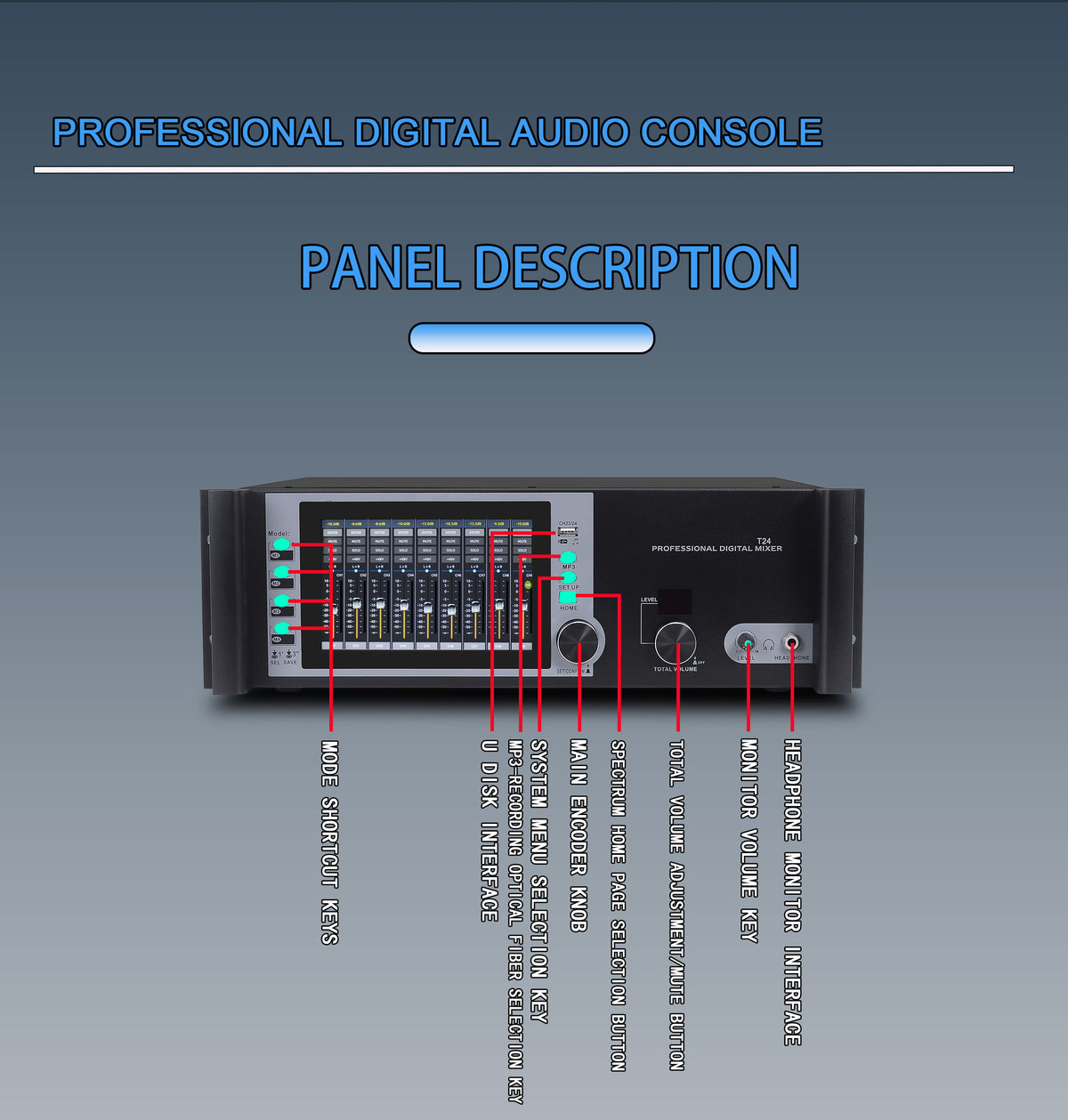

The DGNOG T24 is a touchscreen-controlled digital mixing console for venues and studios that want serious channel count without a large console footprint. Everything — levels, EQ, dynamics, effects, scenes — lives on the 7-inch multi-touch display and the built-in browser control surface.

Please note: the T series has no physical faders. All level control is done on the 7-inch touchscreen or from a browser — that is what keeps the T series compact and affordable.

Which series is right for you?

• T series — no physical faders, touchscreen + browser control. Lowest cost, most compact.
• DAM series — manual faders for a traditional tactile feel.
• MDX series — desktop-design motorized faders with 3 DCA groups.
• MX series — flagship, with curved-surface motorized faders and 6 AUX outputs.

Not sure which model fits your venue? Tell us your channel count and we will point you to the right one.

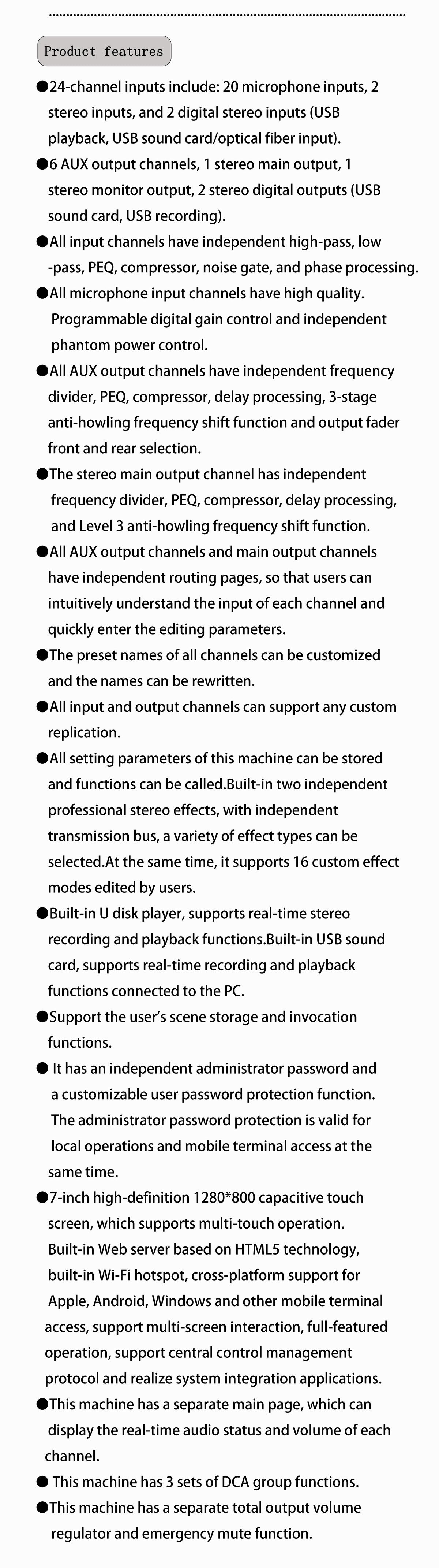

What you get

• 24 input channels — 20 microphone inputs, 2 stereo and 2 digital stereo channels
• Touchscreen + browser fader control — no physical faders; the whole console is virtual and recallable
• One-click mute — silence any channel or the entire mix instantly from the touchscreen
• 7-inch 1280×800 capacitive multi-touch display
• 3 DCA groups for grouped level control
• Two independent stereo effect engines plus 16 editable custom modes

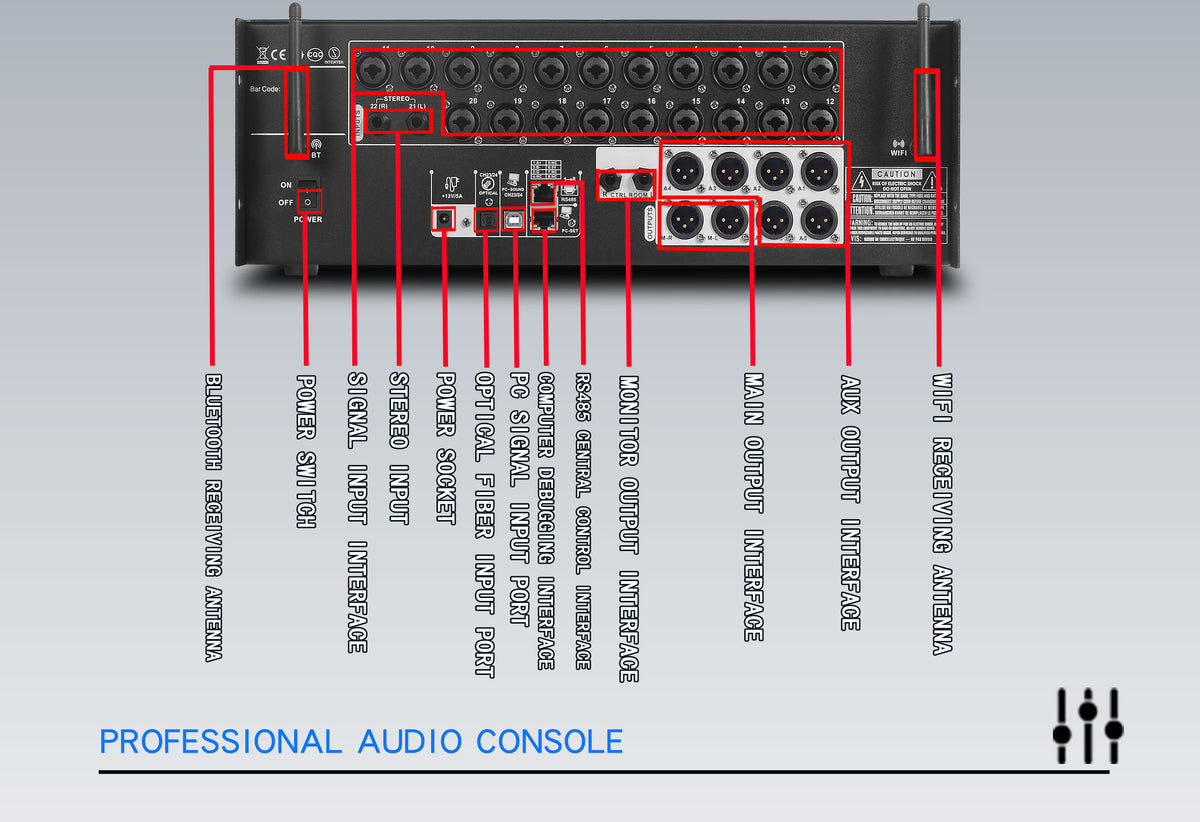

• 6 AUX outputs, plus stereo main, monitor and 2 digital outputs
• Flash-drive stereo record/play + PC USB sound card
• HTML5 web server + Wi-Fi hotspot — control from iOS, Android and Windows

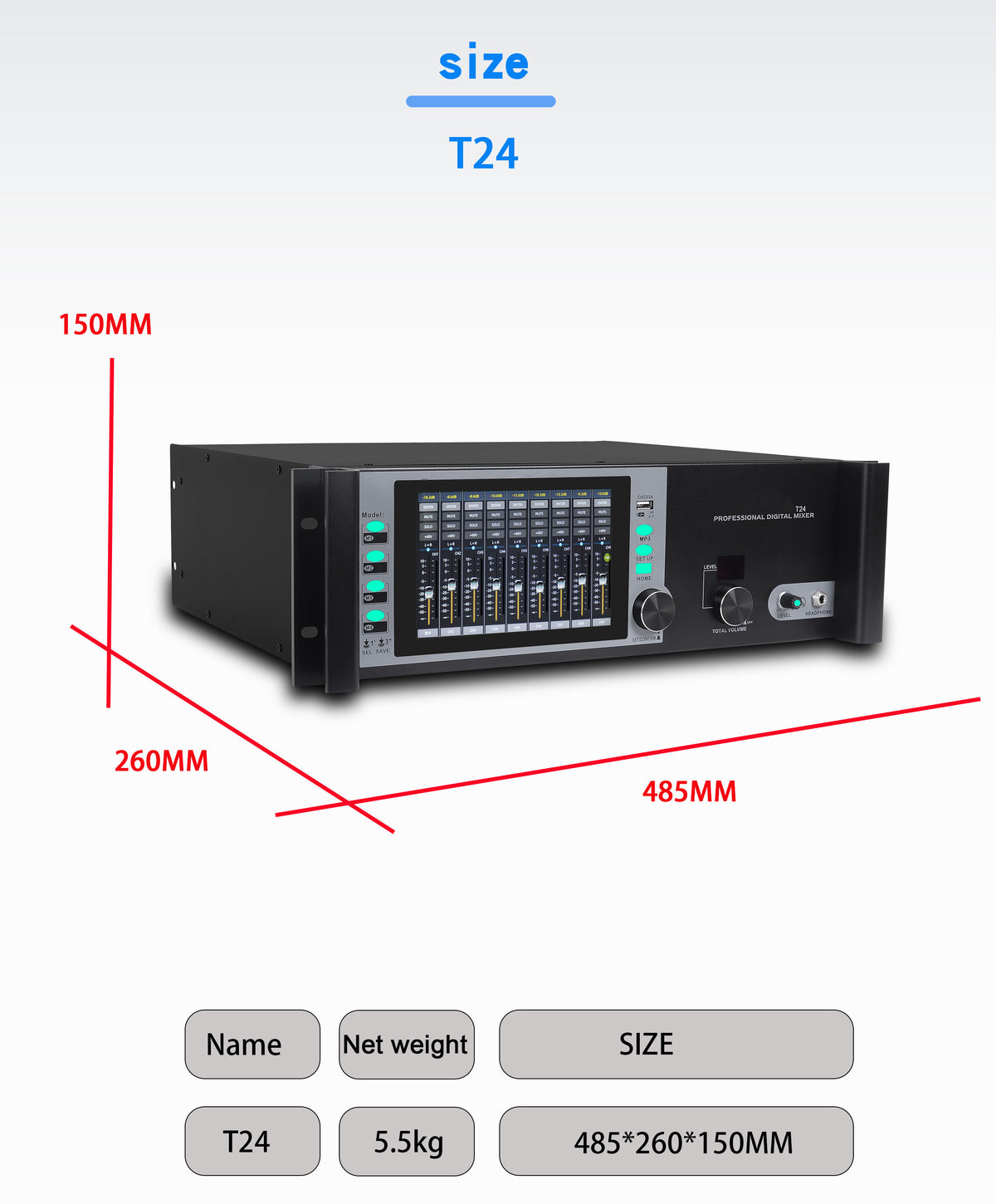

• Compact, lightweight chassis — easy to transport and install

Built for

Houses of worship · Schools and auditoriums · Conference rooms · Event production · Installed systems · Mobile/compact rigs

FAQ

Does the T series have faders? No — it has no physical faders. All level control is done on the 7-inch touchscreen or from a browser. See our DAM / MDX / MX series if you need physical faders.

How many inputs? 24: 20 microphone, 2 stereo and 2 digital stereo.

Can it be browser-controlled? Yes — built-in HTML5 web server and Wi-Fi hotspot.

Does it support USB recording? Yes — flash-drive stereo record/play and PC USB sound-card functions.

How many DCA groups? Three.

Ships from our factory. Need physical faders? Ask us about the DAM, MDX and MX series.
